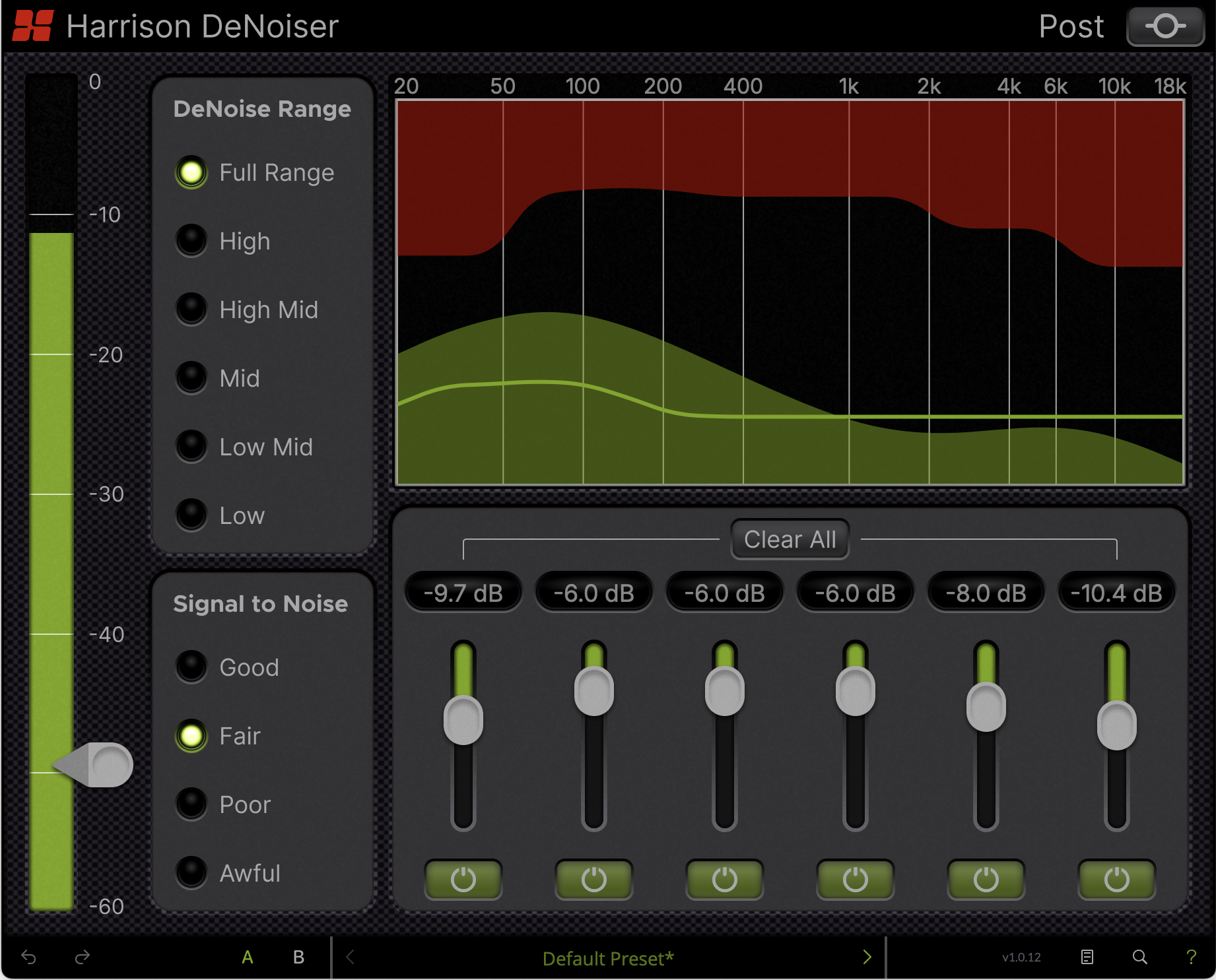

Overview

Harrison DeNosier is an audio repair plugin that provides a quick and easy way to clean up dialog and voice content with poor signal-to-noise ratios or other common and difficult noise problems such as environmental noise.

Supported formats:

• AAX
• VST
• VST3
• AU

Supported channel configurations:

• Mono
• Stereo

Latency: 0 samples



Controls / Components

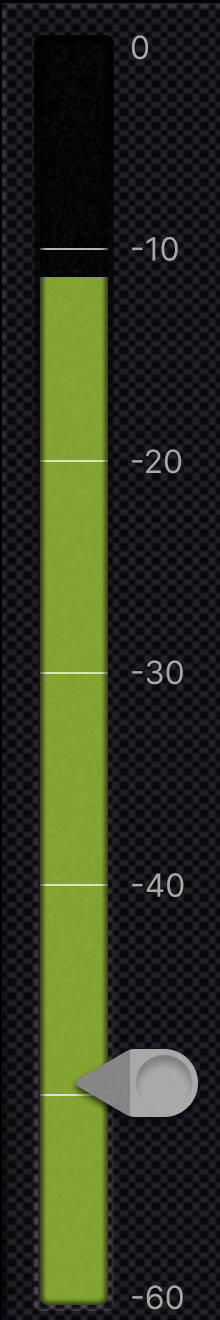

Input Meter & Threshold

The Threshold handle is overlaid on the Input Meter and is used to set the lower limit for the DeNoiser. When the incoming signal drops below the Threshold, full gain reduction is applied to the signal; this full gain reduction is applied to avoid hearing the DeNoiser working harder on unneeded background hiss or atmosphere sounds, a process which can sound unnatural. Typically, this should be set slightly below the nominal level of the incoming noisy signal.

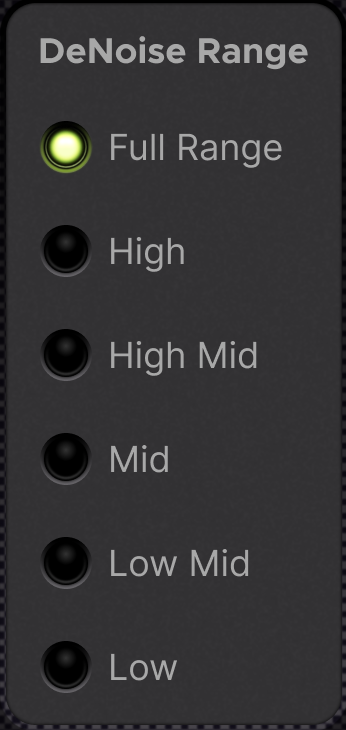

Denoise Ranges

These six radio buttons select the frequency range where DeNoiser should focus its processing. Selecting a specific range will allow DeNoiser to leave certain frequency ranges untouched which is optimal if they contain no offending noise. The options and their corresponding frequency ranges are:

• Full Range: 20-18kHz
• High: 4k-18kHz
• High Mid: 200-18kHz
• Mid: 200-6kHz
• Low Mid: 20-6kHz
• Low: 20-400Hz

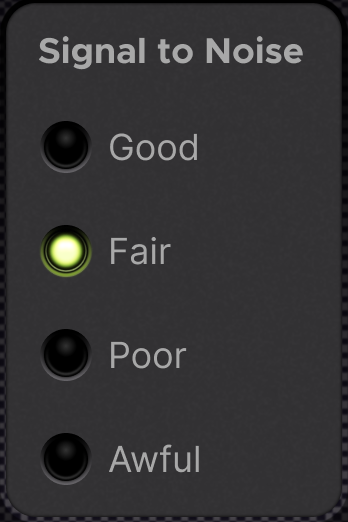

Signal to Noise

These four radio buttons determine how aggressive DeNoiser will work based on the amount of undesired noise in the signal. The options are:

• Good: For use with signals that contain common background hiss.
• Fair: When the background hiss is higher than average.
• Poor: When other types of noise are also in the signal, such as wind.
• Awful: When there is lots of undesirable background noise—this is the most aggressive setting.

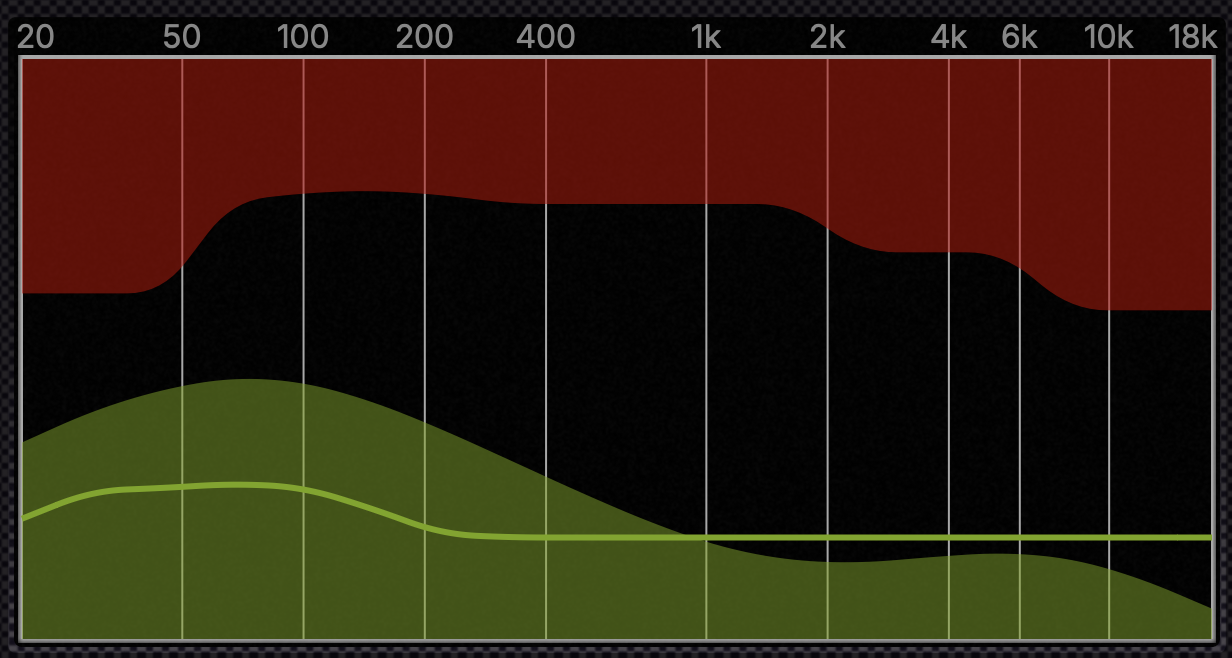

Metering / Dynamic Spectrum Display

The Dynamic spectrum display shows the magnitude of the program material, detected noise, and applied gain reduction overlaid simultaneously. This trio of displays allows you to detect and fix even the ugliest noise issues with minimal effort. The displays use the following color coding:

• Green: Input Signal FFT
• Green Line: Detected Noise Fingerprint
• Red: Gain Reduction

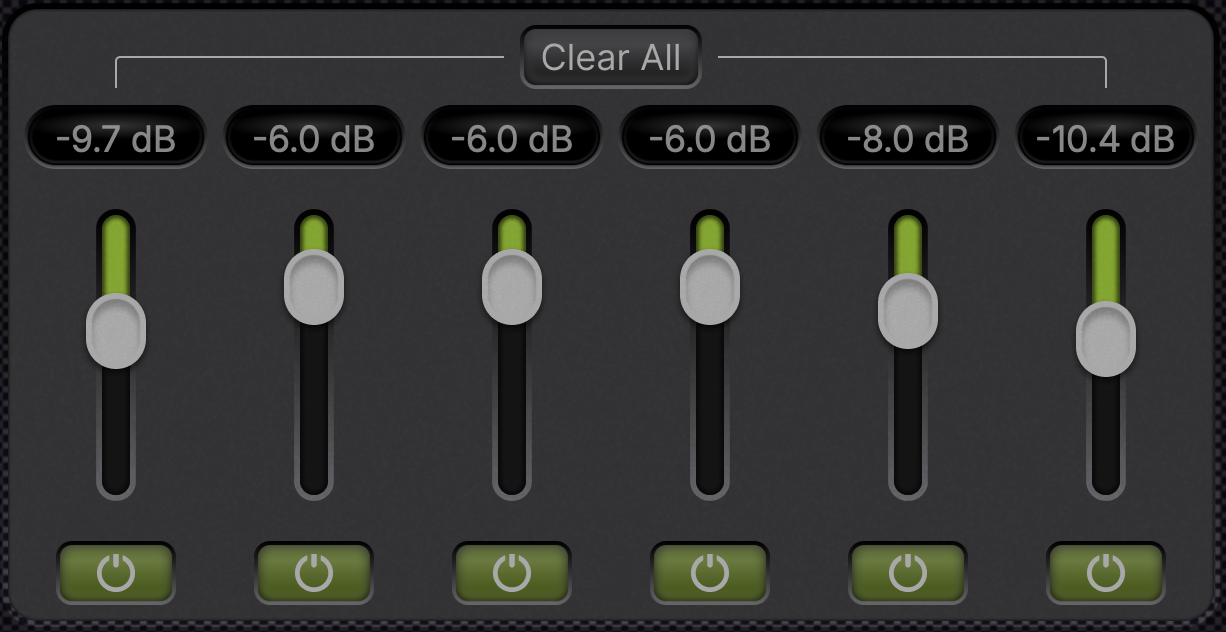

Gain Reduction Sliders

Each of the six sliders adjusts the amount of gain reduction in an associated band of frequencies. Lowering the sliders increases the amount of gain reduction for the bands from 0 to -24dB with actual values shown in the associated windows above each slider.

Below each slider is a "power" button which can be used to enable and disable the associated slider. Toggling this button can help you quickly compare the impact of a gain reduction slider on DeNoiser's processing.

Above the sliders is a "Clear All" button which, when clicked, resets all Gain Reduction Sliders back to 0dB.





Bypass Button

The Bypass button in the upper-right corner allows you to completely bypass all processing so you can make a quick comparison of the denoised output against the original, unprocessed signal.

This button has a special dual behavior—it can function as a momentary bypass, or will toggle the bypass state as follows:

• If you click and hold on this button, it will bypass the signal for as long as you hold the button. Normal operation will resume when you release the mouse button.
• If you click and quickly release this button, it will toggle the bypass state.



Undo / Redo

You can click the left-pointing arrow to undo previous actions or click the right-pointing arrow to redo undone actions.



A/B Comparison

Use these buttons to switch between two temporary states of the DeNoiser. This is useful for making quick comparisons between two different sets of settings to see which one sounds better.



Presets

DeNoiser comes with a number of presets to get you started quickly and you can scroll through the presets using the left and right arrows. The current preset's name will be shown in the center of this display. Whenever the current settings of DeNoiser deviate from the currently selected preset, an asterisk will be appended to the end of the name.

Additionally, you can click on the preset name to open the Preset Menu where you can see a list of all the presets in order to select one directly, as well as commands for saving new settings to the current preset, saving a new preset with the current settings, deleting a preset from the list, and also specifying new settings that DeNoiser will load as defaults in the future.



Documentation

This button provides a quick link to this documentation.



Zoom Factor

Click this magnifying glass will open a menu with various zoom factors—click on an option to set a new size for the plugin that best suits your needs.



Tooltips

Clicking this button will toggle the state of the Tooltips that provide quick information about a control whenever you hover your mouse over it helping you learn the operation of DeNosier. Turn this off once you've learned the plugin or if the Tooltips are distracting.



Operational Notes

Denoising a signal requires the use of both the Threshold slider and the Gain Reduction sliders. The Threshold slider determines "where" in the signal's amplitude range denoising should begin, and the Gain Reduction sliders determine "how much" denoising should be applied when the signal drops below the Threshold.

If the Gain Reduction sliders are all at their top (0dB) positions, no denoising will be performed no matter the position of the Threshold slider.





Control Behaviors & Shortcuts

Various mouse & keyboard shortcuts can be used to perform certain actions on the following controls:

Sliders/Knobs



Labels



Combo Boxes (Drop-down menus)



Band Controls



Graph Rulers



System Requirements

Your system should meet one of the following OS version requirements in order to run Harrison plugins:

PC:

• Windows 11
• Windows 10*

Macintosh:

• macOS 26 Tahoe
• macOS 15 Sequoia
• macOS 14 Sonoma
• macOS 13 Ventura – 10.15 Catalina*

* NOTE: We do not actively test these older operating systems as they are no longer supported by their respective developers, but we currently know of no reasons the current versions of our plug-ins will not work on these systems. That said, your mileage may vary; if you are running an older OS version, we recommend you demo our product to verify that it is compatible with your system before purchasing. If you need access to older versions of our products, please check the SSL/Harrison Legacy Plugins Download list.

macOS Apple Silicon/ARM Support: This plug-in is provided as a universal binary for macOS and features native Apple Silicon support.

Note for Pro Tools users: Pro Tools 11 or higher is required on Mac, 10.3.5 or higher is required on Windows.

Additional requirements on Windows

Harrison plugins require the “Windows C++ Universal Runtime” to be installed on your computer.  Universal runtime is part of the system’s core libraries on Windows 10. On Windows versions Vista to 8.1,  it will be automatically installed via Windows Update. It is also possible to install the runtime manually, but that is outside the scope of this manual.

Note for Linux Users

If you’re experiencing issues with the plugin’s graphics or the GUI isn’t showing up correctly on Linux, make sure your system’s graphics driver supports the minimum required OpenGL version of 3.2 or higher. To check this, run glxinfo | grep Max in a terminal window and make sure that the value listed for the OpenGL core profile version string is at least 3.2 or greater.

If your core profile version meets this requirement but you are still experiencing graphics issues like the ones mentioned above, it is likely that your system is reporting an OpenGL version lower than 3.2 to ensure backwards compatibility with deprecated OpenGL functions. To work around this, you can force the system to report an OpenGL version of 3.2 or higher by setting this environment variable: MESA_GL_VERSION_OVERRIDE=3.2

You can use this as a prefix when opening your DAW from a terminal command like so:

MESA_GL_VERSION_OVERRIDE=3.2 {command_to_launch_program}

This will set the environment variable for that particular terminal session only, so it will be reset once the session is ended. If you don’t want to run this command every time you launch your DAW, you can set the environment variable in your profile script so that it automatically gets set every time you login.



Installation & Licensing

Licensing on macOS & Windows

This plugin is licensed through iLok on macOS and Windows. Visit iLok, Licensing and Activation for guidance on activating your Harrison plug-in.



Licensing on Linux

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)

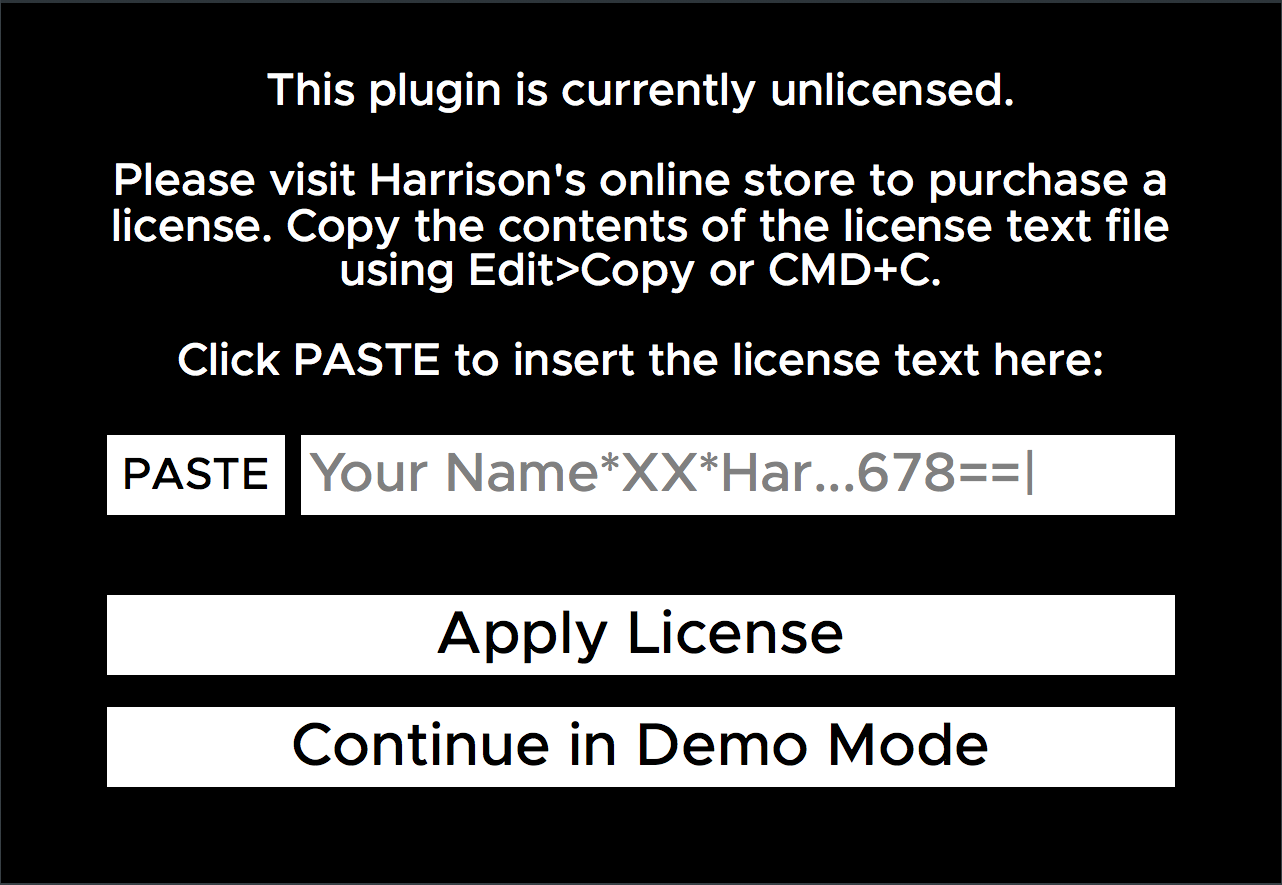

In DEMO mode, after using the plugin for a certain amount of time, it will display a message:

This message will come up periodically unless a license is provided. You can purchase a license directly from Harrison’s web store or from an authorized plugin reseller. Once you’ve purchased a license, install it by entering your license key into the designated field on this screen. Continue to the next section for detailed instructions on how to obtain your license key.

Obtaining your License Key

After you purchase a license, you will receive a license key that will look something like this:

{your  name}*AVA-BF*DC-138971-151520-1|gGLbnvCZJe386ULohzfQN6cIsoZ71n7c+AUg==|

This license key is required to install your license and activate the full version of the plugin. The way to obtain your license key varies depending on where you purchased the license from.

If you purchased the license from Harrison’s web store, you will receive an email with a link to download a text file containing your license key. If you purchased the license from a reseller, you will receive an email containing the license key text.



Licensing your Plugin

When prompted by the plugin, copy and paste your license key into the designated text input field. This will automatically install your license and register it with the plugin.

Once installed, Harrison’s license files are simple text (.txt) files which are stored in the user’s HOME folder. The HOME folder is the folder that contains your Desktop, Downloads and other folders. The location of your HOME folder is different for each operating system:

• Linux: /home/{your username}

You may keep a copy of this file for your own use. The license is a per-user license and you may install the license file on all of your computers. To install the file on a new computer, simply save the file to a USB key or other transferable disk; then transfer the license file to the new computer’s HOME folder. The license file has your name encrypted in it, so you should not share it with other people. Your name will appear on the top of the plugin’s control panel to indicate that it is licensed to you.

The plugin will automatically detect your license key as long as the license file is stored in the HOME folder of the computer you are using. After transferring the license file to a new computer, it may be necessary to close and re-open your DAW in order for the plugin to detect the license.

If you don’t want to keep your license in your HOME folder for whatever reason, you may also store it in the following alternative location:  ~/.config/harrisonconsoles



Finding the plugin in your DAW

DAW operations vary tremendously. Generally speaking, to use the plugin you must follow these steps:

1. Install the plugins, using the provided plugin installer application.
2. Follow your DAW’s instructions to “scan” for new plugins.

Please refer to your DAW manual to see which plugin formats (AAX, AU, VST, or VST3) are supported by your workstation.

Most plugin formats require that plugins are installed to a specific location on the system. In these cases, the installer will place the plugins in the default locations.

For VST format, on Windows, it is normally expected that the user defines the location of VST plugins, and tells the workstation where to find the plugins. The default location for VST plugins is C:\Program Files\Steinberg\VST.  The plugin installer will save the VST (.dll) files to that location if a custom VST path is not provided by the OS.  If you are having trouble, you should verify that the path is included in your DAW VST scan paths.
