Overview

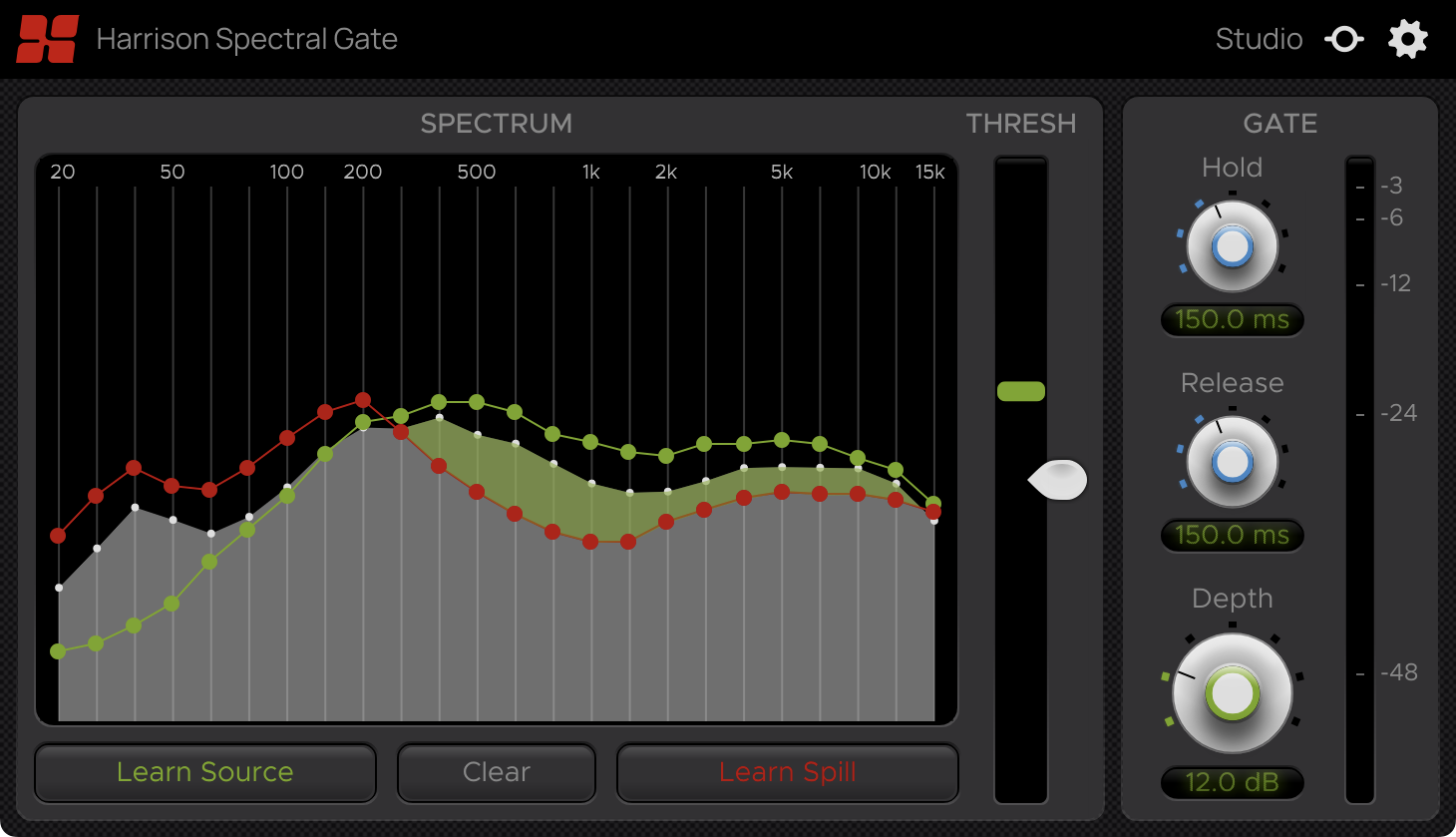

The Harrison Spectral Gate is a unique gate plugin that can learn and differentiate between the spectral characteristics of the desired “Source” material and the undesired “Spill” within a signal for easier and more accurate triggering.

Supported formats:

• AAX
• VST
• VST3
• AU

Supported channel configurations:

• Mono
• Stereo

Latency: 2048 samples



Controls/Components

Learn Source

Learns the desired “Source” material within the signal being played. The Source is any part of a signal that you want to pass through the gate unaffected. While the Learn Source button is engaged, any input signal that is played will be recognized as the Source signal and the green Source line on the Spectrum Display will adhere to the shape of the input spectrum to capture the frequencies present in the Source material.

Click this button only when the desired part of the signal is being played to learn the Source signal. If necessary, the button can be held after clicking to include any tail that the Source signal might have. Just make sure the button is released before any undesired spill is played, otherwise it will be picked up as part of the Source signal.



Learn Spill

Learns the undesired “Spill” material within the signal being played. The Spill is any part of a signal that you want to be attenuated or “gated-out”. While the Learn Spill button is engaged, any input signal that is played will be recognized as the Spill signal and the red Spill line on the Spectrum Display will adhere to the shape of the input spectrum to capture the frequencies present in the Spill material.

Click this button only when the undesired spill part of the signal is being played to learn the Spill signal. If necessary, the button can be held after clicking to include any further spill material that may occur after clicking. Just make sure the button is released before any of the desired Source signal is played, otherwise it will be picked up as part of the Spill signal.



Clear

Clears all learned Source and Spill data and resets them back to default (flat).



Spectrum Display

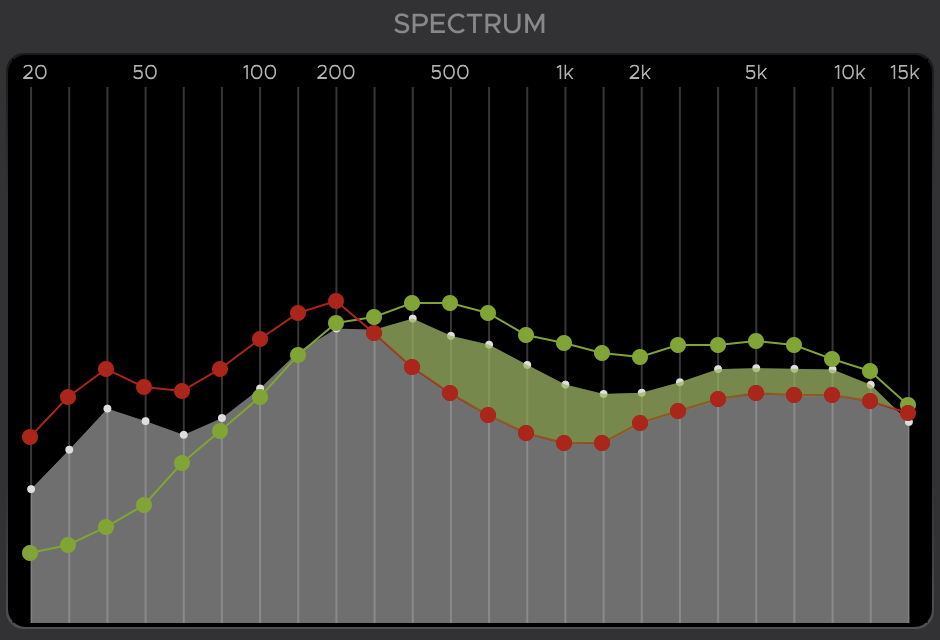

The Spectrum Display provides a visual for the Source, Spill, and input data and also allows you to manually adjust the learned Source and Spill curves.

The green line shows the learned Source signal and the red line shows the learned Spill signal. These are both flat by default, but will update whenever new Source and Spill signals are learned.

During playback, a spectral analysis of the input signal will be displayed behind the Source and Spill lines. Any parts of the input spectrum that are above the Spill line and below the Source line will be highlighted in green as this is the Source signal that triggers the gate to open. Any input signal outside of the Source and Spill lines will be treated as Spill and therefore will not trigger the gate.

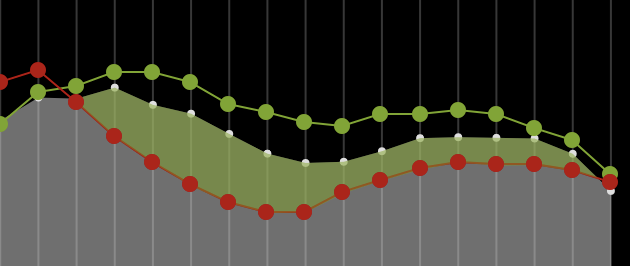

  <- Source signal highlighted in green

Whenever the Learn Source or Learn Spill buttons are engaged, the corresponding lines will be automatically adjusted across the spectrum to match the input signal for as long as the button is held down.

The Source and Spill lines each have 24 adjustable nodes at fixed frequencies across the spectrum. These nodes can be clicked and dragged vertically to manually set the Source/Spill shapes if necessary.



Threshold/Signal Meter

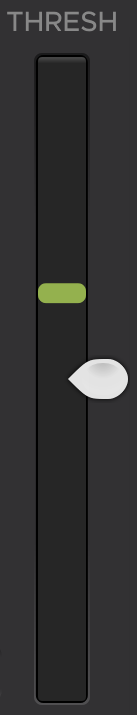

The Threshold slider is attached to the Signal Meter that displays the level of the Source signal (the part highlighted in green on the Spectrum Display). The Source signal refers to any input signal that is present above the Spill level and below the Source level as this is the signal that triggers the gate to open/close. The Threshold sets the level between this range in which the gate will open/close according to the signal level. If the signal level reaches or exceeds the Threshold, the gate will open and allow the signal to pass through unaffected. If the signal is below the Threshold, the gate will close and attenuate the signal by the amount set by the Depth control.

The Signal Meter will only display a signal if some part of the input signal is present in the Source range (above the Spill line and below the Source line). The meter data will display green whenever the signal is at or above the threshold and red if it is below the threshold to reflect when the gate opens and closes.



Hold, Release & Depth

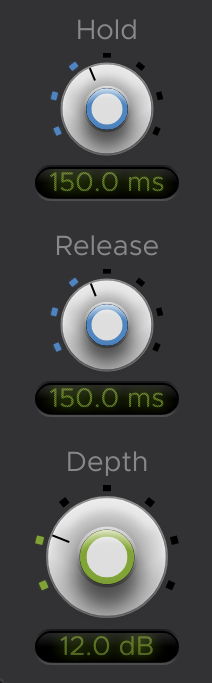

Hold: Sets the amount of milliseconds the gate will remain open after the signal has dropped below the Threshold. This essentially delays attenuation from occuring by a certain amount of time after the gate is triggered to close in order to allow the tail of the signal to pass through.

Release: Sets the amount of milliseconds it takes for the gain reduction to reach full attenuation (determined by the Depth) after the gate closes.

Depth: Sets the maximum amount of gain reduction that is applied when the gate is closed.

Note that if the Depth is set to the minimum value of 0dB, no gain reduction will be applied and the gate will have no effect on the signal.



Reduction Meter

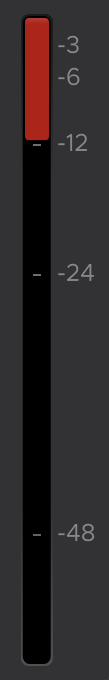

 Displays the level of gain reduction applied to the signal when the gate is closed.



Usage Example

In this example, say you have a snare drum track containing audible spill from other drums picked up by the snare microphone. You want to gate the snare so that all parts of the signal that don’t contain a snare hit are attenuated. The Spectral Gate can be used to achieve this quickly and effectively by setting it to learn the difference between the desired snare hit signal and the undesired spill signal.

While the snare track is playing, click the Learn Source button at the same time any snare hit occurs. If available, find a part of the track where the snare is the only drum present in the signal for best results. You only need to capture the initial transient (the loudest part) of the hit. In most cases, this can be accomplished by clicking and immediately releasing the button on time with the snare hit, but you can also hold the button down for the entire duration of the snare transient and tail and it will automatically pick up the loudest part of the hit. Just don’t keep the button held down long enough to pick up any spill that occurs after the snare hit. You will see that the green Source line on the Spectrum Display now outlines the shape of the input signal spectrum whenever a snare hit occurs. In some cases you may have to do this more than once to achieve an accurate measurement.

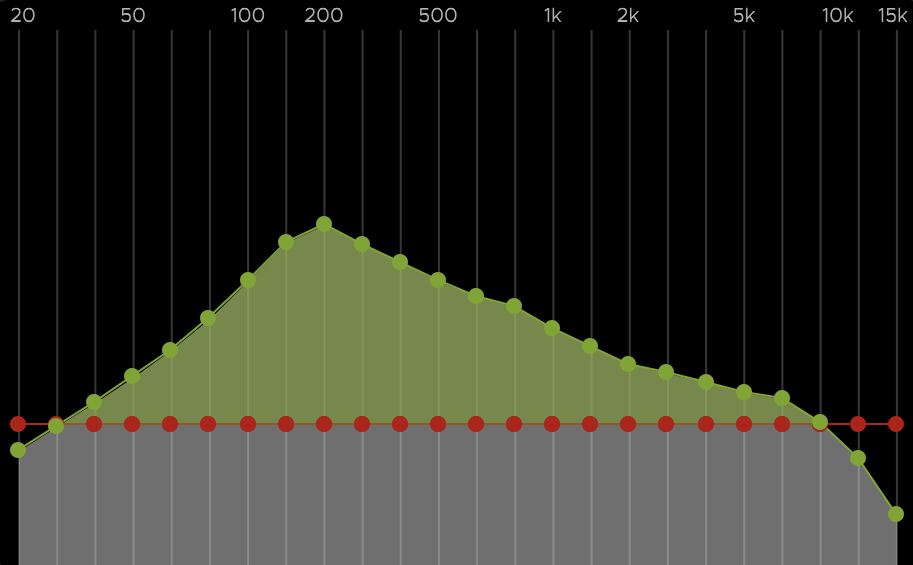

  Source line outlines the snare transient

Now the Source signal has been learned, but we also want to learn the Spill signal to achieve the best results. Click the Learn Spill button during a part of the snare track that contains the undesired spill that you want to gate out. This may include hi-hat, kick or tom hits that occur in between snare hits. You may hold down the Learn Spill button for the entire duration of the spill section(s) to make sure all elements of the Spill signal are captured, but of course you’ll want to be sure to release the button before the next snare hit occurs so that it doesn’t get recognized as part of the Spill signal. You will see that the red Spill line on the Spectrum Display now outlines the shape of the input signal spectrum whenever the designated Spill of the signal occurs. In some cases you may have to do this more than once to achieve an accurate measurement.

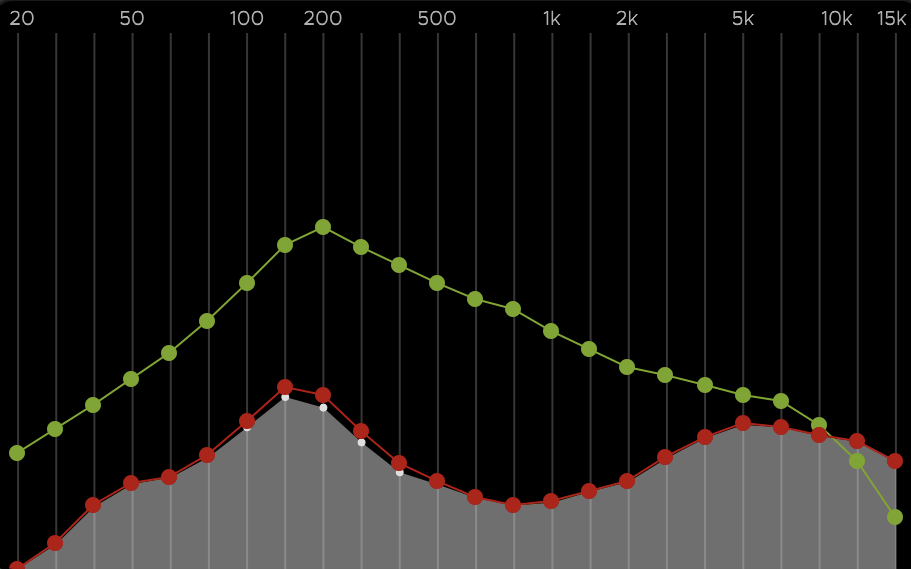

 Spill line outlines the spill signal



Tip: If you’re having trouble clicking the Learn Source or Learn Spill buttons at the right time, you can set your DAW to loop over the intended Source and Spill sections of the track to make them easier to capture. Alternatively, you can always manually adjust the Source/Spill nodes on the Spectrum Display by clicking and dragging them to match the input spectrum at the appropriate parts of the signal.



Now that both the Source and Spill have been learned, the gate will be triggered to open only when there is signal present in the Source range (above the Spill line and Below the Source line). These parts of the input signal are highlighted in green on the Spectrum Display. The Signal Meter to the right of the Spectrum Display will show the level of the Source signal each time the snare is hit. Simply adjust the Threshold slider attached to the meter so that the gate opens on every snare hit, and now the gate should be properly triggered off of the snare and you can adjust the Hold, Release, and Depth controls to set the sound to your liking.

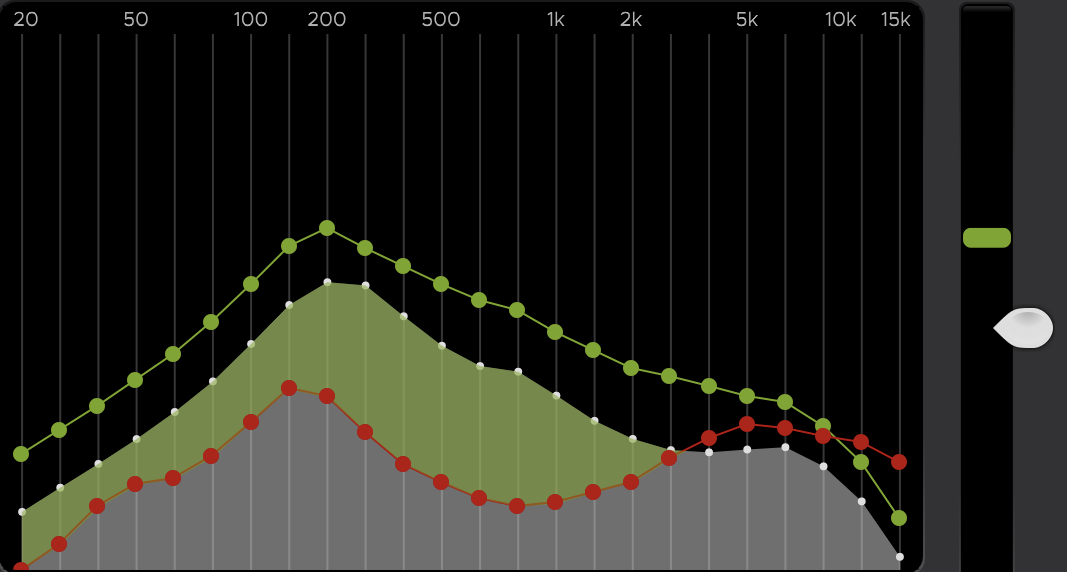

  Gate triggered on snare hit



Note: The Spectral Gate operates under the assumption that the Source signal is greater than the Spill signal in at least one part of the spectrum and will not work as intended if the Spill is greater than the Source throughout the entire spectrum.



Additional Features

At the top-right corner of the plugin window are the Momentary Bypass and Settings buttons.

Momentary Bypass

The Momentary Bypass button bypasses the plugin for as long as it's held. This is useful for auditioning A/B comparisons quickly.



Settings

The Settings button reveals a pop-up menu where the window size can be adjusted. It also contains a link to the plugin manual and version info at the bottom.



Control Behaviors & Shortcuts

Various mouse & keyboard shortcuts can be used to perform certain actions on the following controls:

Sliders/Knobs



Labels



Combo Boxes (Drop-down menus)



Band Controls



Graph Rulers
