Introduction

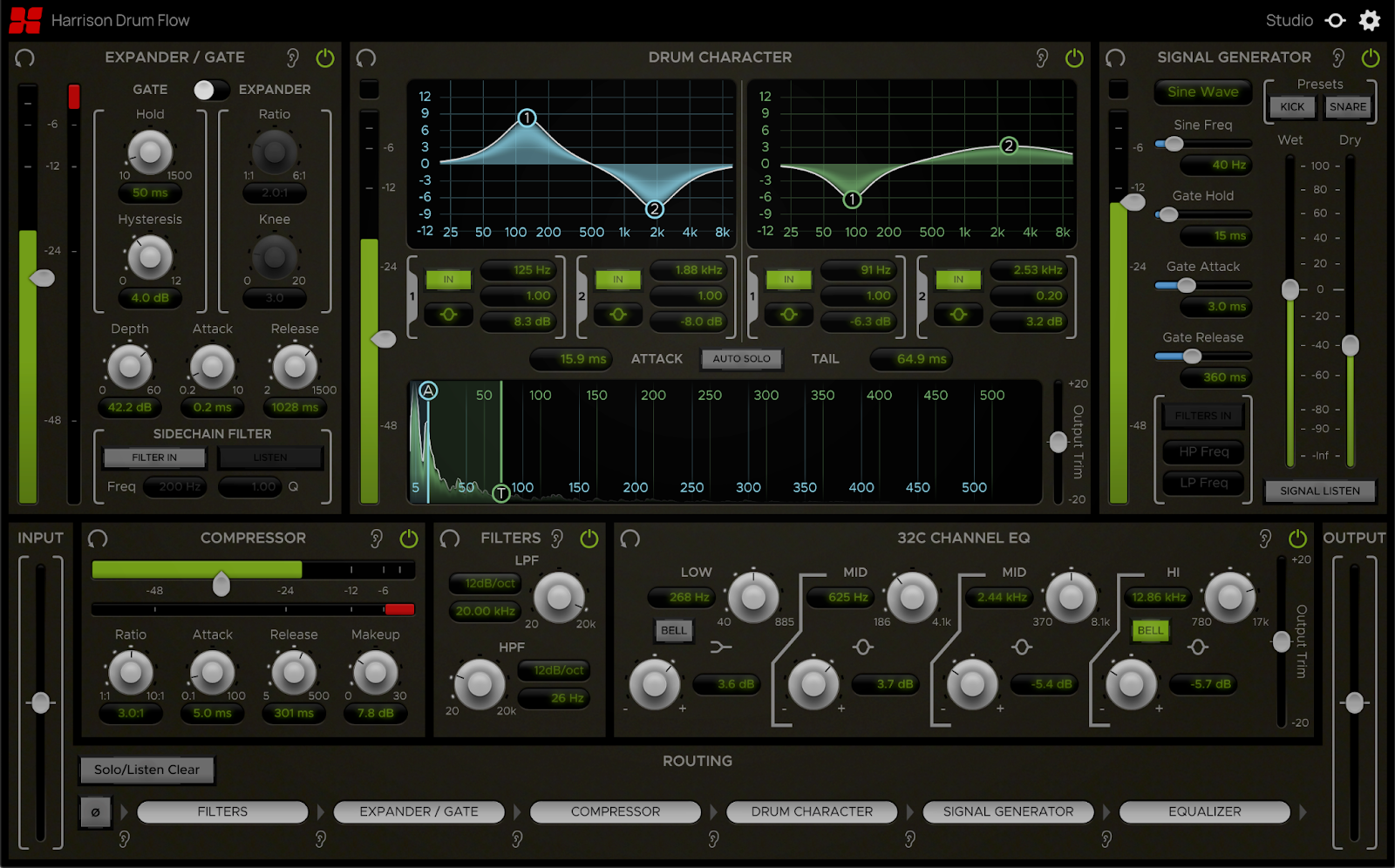

The Harrison Drum Flow is a channel strip plugin designed for mixing drums. It contains 6 routable processing elements and a master section with input, output, and routing controls.

The elements included are:

• Drum Character: A unique equalizer that detects drum hit transients and allows for the attack and tail sections of the envelope to be EQed individually.
• Expander/Gate: A versatile dynamics processor that can be used as either an expander or gate to tighten your drum sounds and remove bleed from other nearby drum mics
• Signal Generator: Enhance your drum sounds with extra 'snap' or 'thump' by blending-in a gated noise or low-frequency tone.
• Compressor: Harrison's full-featured console compressor with Ratio, Attack, Release, and Makeup controls
• 32C Channel EQ: An emulation of Harrison’s renowned 32C channel strip EQ.
• Filters: High- and low- pass filters with selectable shapes.



Plugin Specifications

Supported formats: AAX, VST, VST3, AU

Supported channel configurations: Mono, Stereo

Total Latency: 256 samples

Note: This plugin uses lookahead and should not be used for processing signals in real time.



Module Controls

The processing elements are separated into modules which can each be individually bypassed, soloed, and reset using the following controls on each module’s top bar.



The Reset button resets all of a module’s parameters to their default states.



The Solo button bypasses all processing outside of the module being soloed except for master controls (polarity, input and output trim). This allows individual modules to be auditioned exclusively without hearing the effects of any of the other modules.



The IN button toggles the enablement of each module. If disabled, a module’s processing is bypassed and its effects will not be heard.



Master Controls (Input, Output & Routing)

The master controls consist of the Input, Output and Routing sections at the bottom of the plugin editor. The controls in these sections allow you to invert the input polarity, adjust the input & output trim, and set the routing order between processing elements.

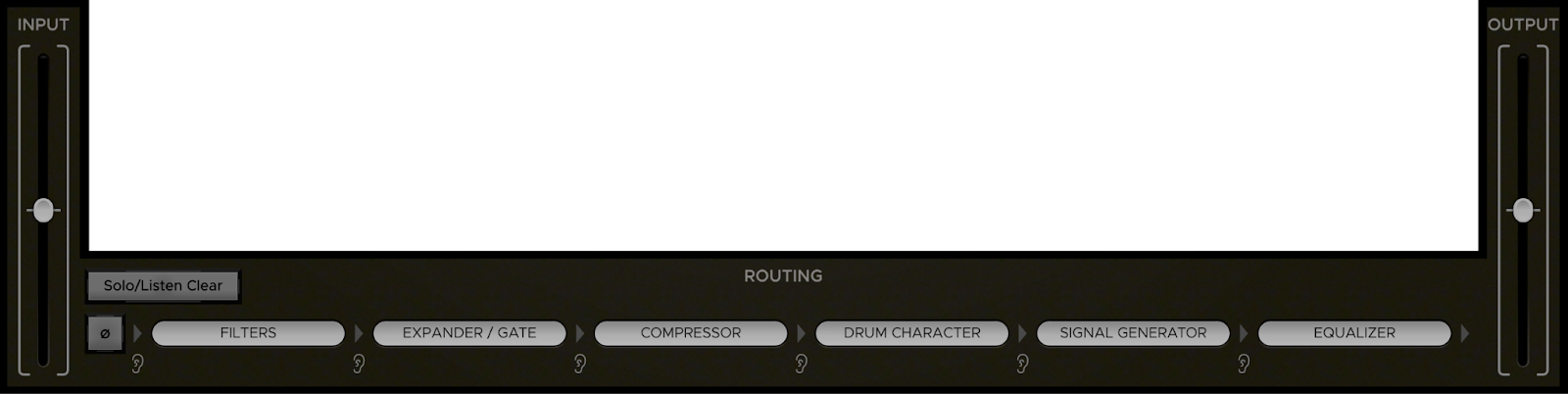

The Routing section displays the order of signal flow between the elements from left to right. Each processing element is represented by a routing item which you can click and drag around to change the order of signal flow. Dragging a routing item to any of the arrows between positions will insert it at that position, shifting all other elements accordingly. If you drag one routing item over another routing item, it will swap the positions of the two items.

The “ear” icon buttons below the routing arrows indicate Router Listen points. These buttons allow you to listen at specific positions along the signal chain by automatically bypassing all modules past the selected point in the routing order.

The Polarity button in the far left of the Routing section inverts the phase of the input signal when toggled on.

The Solo/Listen Clear button at the top-left corner clears any active Routing Listen point as well as any modules that are soloed. It will light up to indicate whenever a module solo or Router Listen is active.

The Input and Output sections to the left and right of the routing section contain the master Input and Output Trim controls which can be used to control the gain staging as necessary. The Input Trim adjusts the gain of the input signal before it gets processed by anything else while the Output Trim adjusts the gain of the output signal at the very end of the signal chain.



Processing Elements

Drum Character

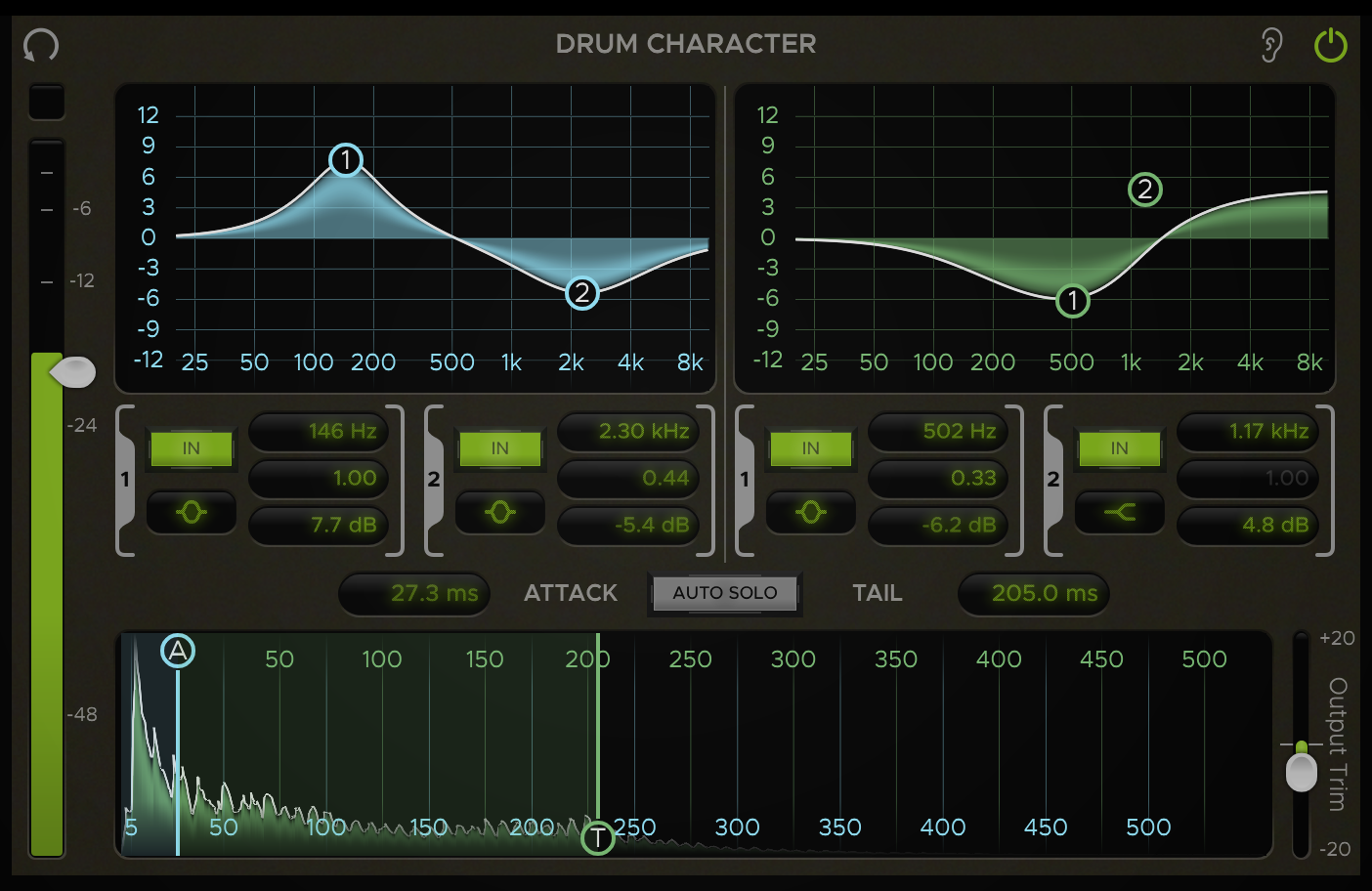

The Drum Character is an EQ that detects the transients of drum hits and allows you to EQ their Attack and Tail ranges separately.

The Threshold slider attached to the input meter on the left sets the level at which the Drum Character EQ gets triggered. Whenever the input signal exceeds the Threshold, the Trigger Indicator light above the input meter will flash indicating that a new drum hit transient has been detected. Set the Threshold so that it only triggers on the desired drum hits.



Waveform Display

When a new drum hit is detected, its transient waveform will be shown on the Waveform Display at the bottom. The Waveform Display has controls for setting the Attack and Tail ranges of the transient. The Attack Width parameter sets the point in milliseconds in which the Attack range ends and the Tail range begins. The Tail Width parameter sets the amount of milliseconds in which the Tail range extends past the Attack Width. The Attack and Tail Widths can be adjusted on the Waveform Display using the sliders labeled “A” and “T” respectively or with the corresponding control labels above the display.



EQ Displays

Adjust the EQ settings for the Attack and Tail ranges using the EQ displays at the top of the module. The display on the left is the Attack EQ which is only applied to the section of audio within the Attack range. The display on the right is the Tail EQ which is only applied to the section of audio within the Tail range. The Attack and Tail EQs each have 2 bands which are labelled 1 and 2. The bands can be adjusted by clicking and dragging them on the graphs or by using the corresponding controls below the graphs.

The Attack and Tail EQ graphs provide a visual display of the EQ curves and allow for direct “hands-on” control of the bands. Each band is represented by a “bubble” on the graph which can be used to adjust its parameters. Click and drag a band’s control bubble to adjust its Frequency and Gain. You can also adjust the Q by right-clicking & dragging or by scrolling the mouse wheel over a band. Alt-clicking a band will reset it to its default state, while double-clicking will reset its Gain only. Special control modifiers such as these allow you to do a lot more with the band controls. For a complete list of control modifiers and shortcuts, see the Control Behaviours & Shortcuts section of the manual.



EQ Controls

The EQ control sections below the graph allow for more advanced control over the bands’ parameters. Each of the 4 band control sections contain controls for the corresponding band’s Enablement, Shape, Frequency, Q, and Gain. You can enable or disable a band by toggling the IN button at the top-left of its control section.

Directly below the IN button is the band Shape selector. Clicking this will open a menu where you can select the EQ shape for the corresponding band.

Each band has the following shape options:

• Low Shelf (12 dB/Octave)
• High Shelf (12 dB/Octave)
• Bell
• Notch (infinite “cut” at the selected frequency, with adjustable Q width)

The control sections also provide Frequency, Q, and Gain controls which can be adjusted by clicking and dragging their value labels or by typing new values directly into them. For ease of use, these will accept bare numbers such as “500” or numbers with units such as “500Hz”, “1k”, “1kHz”, “20dB”, etc.



Auto/Quick Solo

The Auto Solo function allows you to isolate the individual ranges while you adjust their controls. When the Auto Solo button is toggled on, adjusting the Attack EQ bands or the Attack Width will automatically solo the Attack portion of the transient and adjusting the Tail EQ bands or the Tail Width will automatically solo the Tail portion. The solo will only remain active for as long as the control is being adjusted.

Another way to solo the Attack or Tail range is to use the Quick Solo modifier key. When adjusting any of the EQ or Width controls, you can hold down the Control key on your keyboard to temporarily solo the corresponding range until the key is let go or until the control is no longer being adjusted.



Expander/Gate

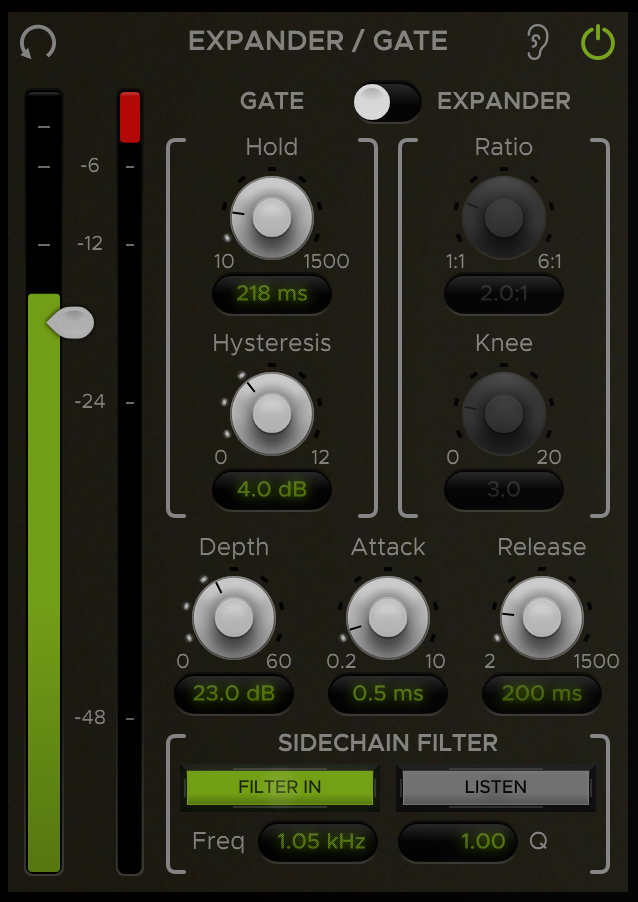

The Expander/Gate is a dynamics processor that attenuates signals below a set threshold. This is useful for removing unwanted parts of a signal that were picked up due to microphone bleed.

The slider attached to the Input Meter on the left controls the Threshold. The Threshold sets the dB level in which the Expander/Gate opens. Signals above the threshold will be allowed to pass through unaffected while signals below the Threshold will be attenuated.

Directly to the right of the Input Meter is the Reduction Meter which displays the level of gain reduction in dB.

The Depth sets the amount of gain reduction that is applied when the Expander/Gate is fully closed.

The Attack sets the amount of milliseconds it takes for the Expander/Gate to open fully once the Threshold has been exceeded.

The Release sets the amount of milliseconds it takes for the Expander/Gate to close all the way once the input signal falls below the Threshold.

The Mode switch at the top toggles between Gate and Expander mode. The availability of certain controls depends on the selected mode. The Hold and Hysteresis are only available in Gate mode and the Ratio and Knee are only available in Expander mode.



Gate Controls

The Hold sets the amount of milliseconds the gate will stay open for once the input signal has dropped below the Threshold.

The Hysteresis sets the amount of dB below the Threshold in which the Gate will close. This allows the signal to fall below the Threshold by a certain amount of dB before the Gate starts closing. For example, if the Threshold is set to -12dB and the Hysteresis is at 4dB, the Gate will open at -12dB and close at -16dB (4dB below the Threshold).



Expander Controls

The Ratio determines the amount of gain reduction applied for every decibel the signal falls below the Threshold. For example, a ratio of 2:1 means that an input signal that is 1dB below the Threshold will be reduced so that the output is 2dB below the Threshold.

The Knee controls the “smoothness” of the Ratio angle. With a low Knee value (Hard Knee), the Expander will react more abruptly as the signal crosses the Threshold. With a high Knee value (Soft Knee), the Expander will react more gradually.



Sidechain Filter

The Expander/Gate has a Sidechain Filter that can be used to filter the key signal that triggers the Expander or Gate. It is a band-pass filter that attenuates all frequencies outside of the target frequency range so that the Expander/Gate will be more sensitive to signals within that range. The Sidechain Filter controls can be found in the Sidechain Filter section at the bottom. The FILTER IN button toggles the filter in or out. When the Filter is toggled in, the other Filter controls will become enabled. The Freq control sets the center frequency of the Filter and the Q control sets the width of the band-pass range around it. The LISTEN button allows you to hear the filtered sidechain signal when toggled on.



Signal Generator

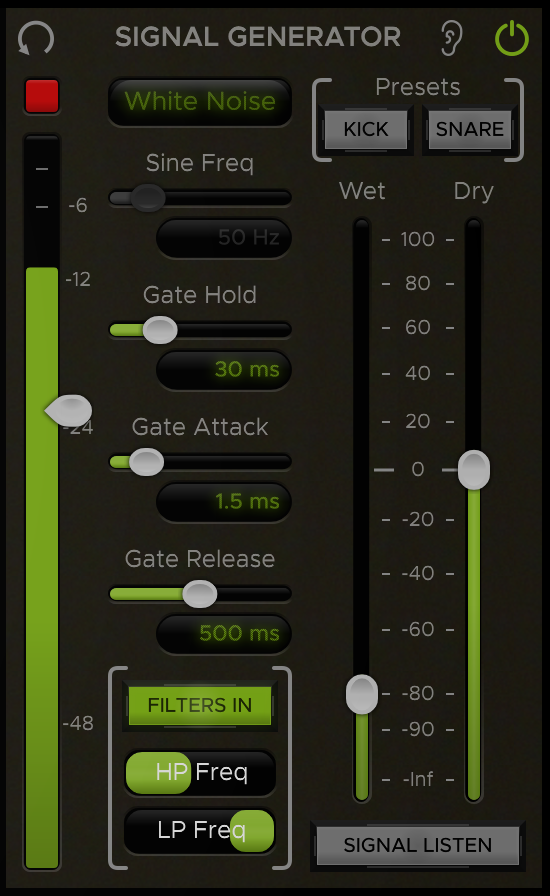

The Signal Generator offers a convenient way to enhance drum hits with various types of synthesized signals, such as white noise on a snare or a low-frequency sine wave on a kick. The generated signal is fed through a gate which is keyed off of the main input allowing the signal to be triggered on drum hits. The generated signal can then be blended with the main input signal in parallel using the Wet and Dry faders.



Signal Type

Choose the type of signal you want to generate using the Signal Type menu at the top. You can select between Sine Wave, White Noise, Int. Input, or Ext. Input.

In Sine Wave mode, the Sine Freq slider will become enabled allowing you to set the frequency of the sine wave.

In Int. Input (Internal Input) mode, instead of generating a signal, it sends a duplicate of the direct input through the gate to allow for parallel gating.

Ext. Input (External Input) mode takes whatever signal is being sent to the plugin’s external key (sidechain) input and uses it as the generated signal. This allows you to use signals generated from external sources outside the plugin.



Gate Controls

The Signal Generator has Threshold, Hold, Attack and Release controls for setting the signal gate.

The slider attached to the Input Meter on the left controls the gate Threshold. Use this to set the level in which you want the gate to open for the generated signal to pass through. The Trigger Indicator light above the input meter will light up whenever the gate opens.

The Gate Hold sets the amount of milliseconds the gate will stay open for once the input signal has dropped below the Threshold.

The Gate Attack sets the amount of milliseconds it takes for the gate to open fully once the Threshold has been reached.

The Gate Release sets the amount of milliseconds it takes for the gate to close all the way once the input signal is no longer above the Threshold.



Filters

The Signal Generator also has a pair of high and low pass Filters which can be used to filter the generated signal as needed and are especially useful for shaping white noise. The Filter controls can be found in the Filter section at the bottom of the module. The FILTERS IN button toggles the Filters in or out. Note that the Filters will be disabled in Sine Wave mode.



Presets

The Kick and Snare preset buttons can be used to quickly dial-in settings based on the type of signal being processed.



Signal Listen

The SIGNAL LISTEN button at the bottom-right of the module allows you to listen to the generated signal only.



Wet & Dry Level

The Wet and Dry faders can be used to balance the levels of the Wet (generated) signal and the Dry (input) signal.



Compressor

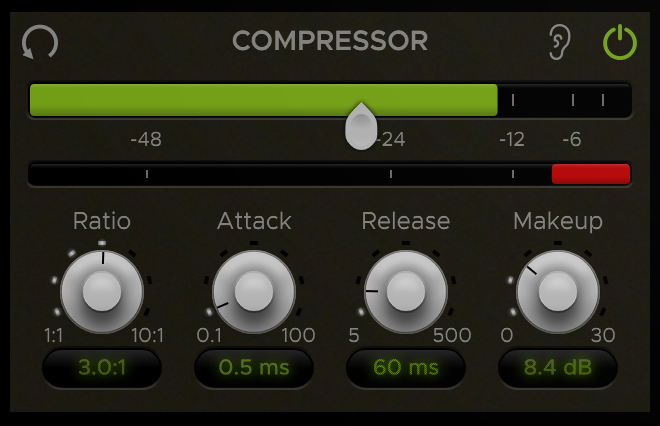

The Compressor is based on the Harrison Mixbus channel strip compressor with the addition of Attack and Release controls.

The slider attached to the Input Meter displayed horizontally across the top controls the compressor Threshold. The Threshold sets the dB level in which gain reduction starts to occur.

Directly below the Input Meter is the Reduction Meter which shows the level of gain reduction in dB.

The Ratio determines the amount of gain reduction applied for every decibel the input signal exceeds the Threshold. For example, a ratio of 2:1 means that an input signal that’s 2dB over the Threshold will result in an output that’s only 1dB over the Threshold.

The Attack time is the amount of milliseconds it takes for the gain reduction to reach full attenuation once the input signal passes the Threshold.

The Release time is the amount of milliseconds it takes for the signal to return to its original, uncompressed state once the input signal falls below the Threshold.

The Makeup control is used to boost the gain of the output signal to compensate for any gain that was lost during compression.



32C Channel EQ

The 32C Channel EQ is modeled after the analog EQ found on the Harrison 32C channel strip. It has four bands with Frequency and Gain controls, optional high & low shelf filters, and an Output Trim control.

The four bands consist of a HI band, LOW band, and two MID bands. Each band section has Frequency controls on top and Gain controls on the bottom. You can adjust these parameters with the knobs or by typing values directly into the corresponding control labels.

By default, the HI and LOW bands are shelf filters and the MID bands are bell filters with a proportional Q. The HI and LOW bands can be toggled between Bell and Shelf mode using the corresponding BELL buttons in each section. The bands are in Bell mode when the button is toggled on and Shelf mode when it’s toggled off.

NOTE: The proportional-Q design was used in the original Harrison consoles to allow an engineer to use the EQ as either a subtle tone shaping tool, or a steep filter problem-solver, with only 2 knobs. As the gain is progressively increased (or cut), the bandwidth becomes progressively narrower (the Q increases). A typical technique is to increase the gain to maximum, sweep the frequency to find an offending sound, and then turn the gain to minimum to “notch” out the unwanted frequencies.



Filters

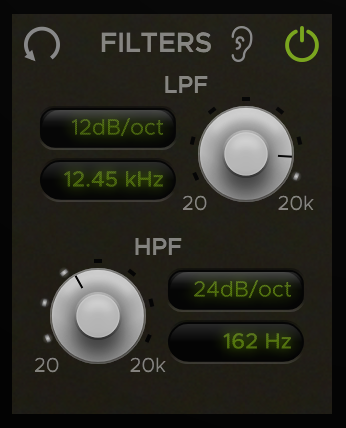

The Filter module contains a Low-Pass Filter (LPF) and a High-Pass Filter (HPF) with variable slopes. Set the corner frequencies of the Filters by adjusting their Frequency knobs or by typing values directly into the corresponding Frequency control labels.

The Slope selectors above the Frequency control labels allow you to select the Slope for each of the Filters. Clicking the Slope selector will open a menu where you can select from 5 different Slope settings: 6 dB/Octave, 12 dB/Octave, 24 dB/Octave, 36 dB/Octave, and 48 dB/Octave. You can also switch through the Slope options more quickly without opening the menu by scrolling the mouse wheel over the Slope selector.



Additional Features

At the top-right corner of the plugin window are the Momentary Bypass and Settings buttons.

Momentary Bypass

The Momentary Bypass button bypasses the plugin for as long as it's held. This is useful for auditioning A/B comparisons quickly.



Settings

The Settings button reveals a pop-up menu where the window size can be adjusted. It also contains a link to the plugin manual and version info at the bottom.



Control Behaviors & Shortcuts

Various mouse & keyboard shortcuts can be used to perform certain actions on the following controls:

Sliders/Knobs



Labels



Combo Boxes (Drop-down menus)



Band Controls



Graph Rulers



System Requirements

Your system must meet the following requirements in order to run Harrison plugins:

• Windows 7 or higher
• Mac OS 10.9 or higher
• Linux GCC 5 compatible systems
• OpenGL 3.2 or higher
• libcurl-gnutls on Linux

macOS M1/ARM Support: This plug-in is provided as a universal binary for macOS and features native M1 support.

Note for Pro Tools users: Pro Tools 11 or higher is required on Mac, 10.3.5 or higher is required on Windows.

Additional requirements on Windows

Harrison plugins require the “Windows C++ Universal Runtime” to be installed on your computer.  Universal runtime is part of the system’s core libraries on Windows 10. On Windows versions Vista to 8.1,  it will be automatically installed via Windows Update. It is also possible to install the runtime manually, but that is outside the scope of this manual.

Note for Linux Users

If you’re experiencing issues with the plugin’s graphics or the GUI isn’t showing up correctly on Linux, make sure your system’s graphics driver supports the minimum required OpenGL version of 3.2 or higher. To check this, run glxinfo | grep Max in a terminal window and make sure that the value listed for the OpenGL core profile version string is at least 3.2 or greater.

If your core profile version meets this requirement but you are still experiencing graphics issues like the ones mentioned above, it is likely that your system is reporting an OpenGL version lower than 3.2 to ensure backwards compatibility with deprecated OpenGL functions. To work around this, you can force the system to report an OpenGL version of 3.2 or higher by setting this environment variable: MESA_GL_VERSION_OVERRIDE=3.2

You can use this as a prefix when opening your DAW from a terminal command like so:

MESA_GL_VERSION_OVERRIDE=3.2 {command_to_launch_program}

This will set the environment variable for that particular terminal session only, so it will be reset once the session is ended. If you don’t want to run this command every time you launch your DAW, you can set the environment variable in your profile script so that it automatically gets set every time you login.



Installation & Licensing

Licensing on macOS & Windows

This plugin is licensed through iLok on macOS and Windows. Visit iLok, Licensing and Activation for guidance on activating your Harrison plug-in.



Licensing on Linux

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)

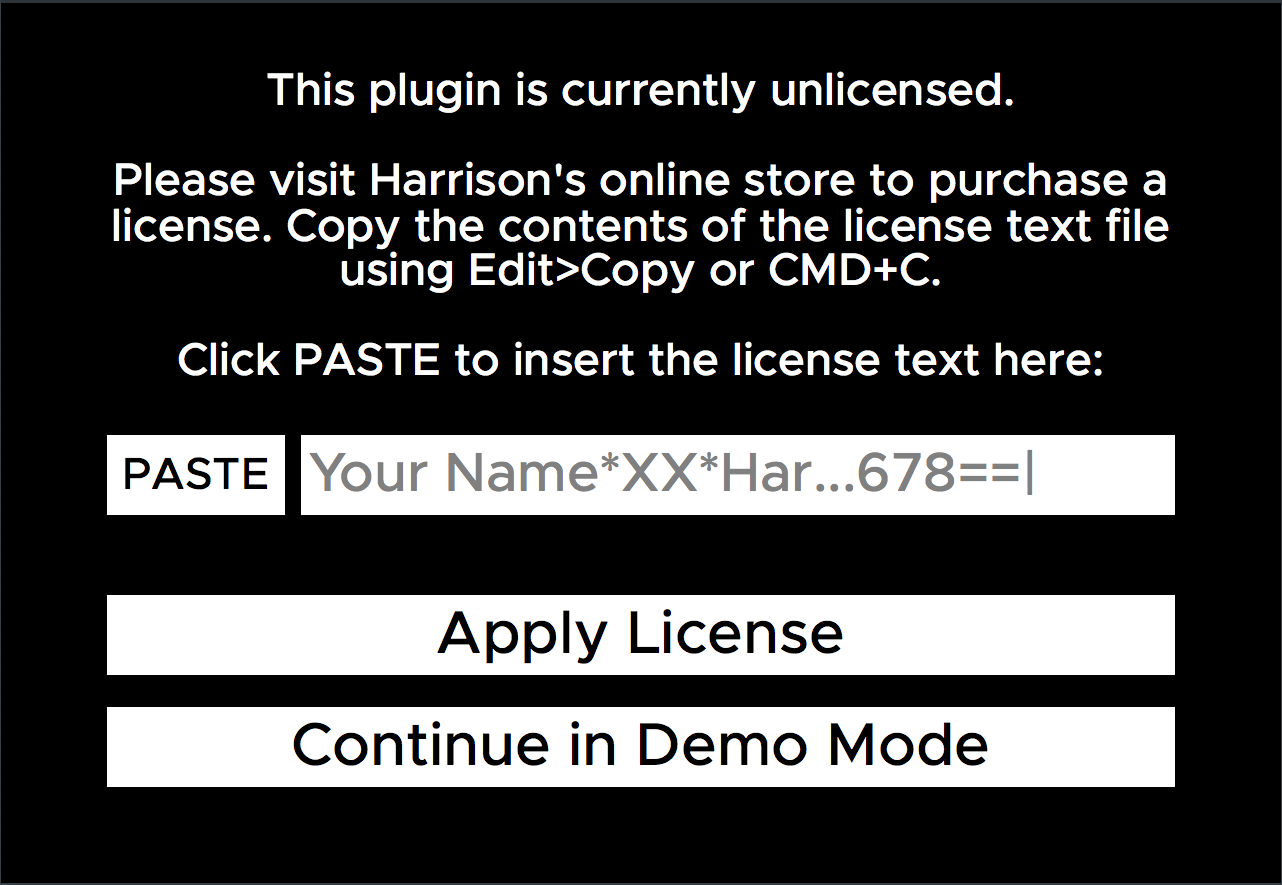

In DEMO mode, after using the plugin for a certain amount of time, it will display a message:

This message will come up periodically unless a license is provided. You can purchase a license directly from Harrison’s web store or from an authorized plugin reseller. Once you’ve purchased a license, install it by entering your license key into the designated field on this screen. Continue to the next section for detailed instructions on how to obtain your license key.

Obtaining your License Key

After you purchase a license, you will receive a license key that will look something like this:

{your  name}*AVA-BF*DC-138971-151520-1|gGLbnvCZJe386ULohzfQN6cIsoZ71n7c+AUg==|

This license key is required to install your license and activate the full version of the plugin. The way to obtain your license key varies depending on where you purchased the license from.

If you purchased the license from Harrison’s web store, you will receive an email with a link to download a text file containing your license key. If you purchased the license from a reseller, you will receive an email containing the license key text.



Licensing your Plugin

When prompted by the plugin, copy and paste your license key into the designated text input field. This will automatically install your license and register it with the plugin.

Once installed, Harrison’s license files are simple text (.txt) files which are stored in the user’s HOME folder. The HOME folder is the folder that contains your Desktop, Downloads and other folders. The location of your HOME folder is different for each operating system:

• Linux: /home/{your username}

You may keep a copy of this file for your own use. The license is a per-user license and you may install the license file on all of your computers. To install the file on a new computer, simply save the file to a USB key or other transferable disk; then transfer the license file to the new computer’s HOME folder. The license file has your name encrypted in it, so you should not share it with other people. Your name will appear on the top of the plugin’s control panel to indicate that it is licensed to you.

The plugin will automatically detect your license key as long as the license file is stored in the HOME folder of the computer you are using. After transferring the license file to a new computer, it may be necessary to close and re-open your DAW in order for the plugin to detect the license.

If you don’t want to keep your license in your HOME folder for whatever reason, you may also store it in the following alternative location:  ~/.config/harrisonconsoles



Finding the plugin in your DAW

DAW operations vary tremendously. Generally speaking, to use the plugin you must follow these steps:

1. Install the plugins, using the provided plugin installer application.
2. Follow your DAW’s instructions to “scan” for new plugins.

Please refer to your DAW manual to see which plugin formats (AAX, AU, VST, or VST3) are supported by your workstation.

Most plugin formats require that plugins are installed to a specific location on the system. In these cases, the installer will place the plugins in the default locations.

For VST format, on Windows, it is normally expected that the user defines the location of VST plugins, and tells the workstation where to find the plugins. The default location for VST plugins is C:\Program Files\Steinberg\VST.  The plugin installer will save the VST (.dll) files to that location if a custom VST path is not provided by the OS.  If you are having trouble, you should verify that the path is included in your DAW VST scan paths.
