User Guide - Harrison 32 Bus

HArrison 32-Bus.png

Experience the magic of the 32C workflow with the Studio 32 Bus plugin. This plugin emulates the bus processing of the Harrison Mixbus 32C DAW, allowing you to bring a piece of the famed 32C workflow to any DAW. With this plugin, you can add tape saturation, compression, EQ, and limiting to your bus tracks, giving them warmth, punch, and clarity. The Studio 32 Bus plugin is the next best thing to having a real 32C console in your studio.



Features:

  • Super fast and easy to use EQ
  • Input with Tape Saturation to get the analog vibe you're looking for
  • Compressor is modeled after the highly regarded Mixbus strip compressor
  • Limiter is transparent and clean and is your safeguard to prevent clipping
  • The Output VU Meter is an elegant way of monitoring volume level






EQ

32bus EQ.png

The EQ in Harrison’s 32 Bus plugin is a masterpiece of sound engineering. It captures the essence of the Mixbus strip EQ, and can add a touch of brilliance with a high-shelf frequency control. This EQ will make your mixes shine like never before.



Input Section with Tape Saturation

32Bus input section .png

The tape saturation in Harrison’s 32 Bus plugin adds color to your mix with a warm and rich sound that will make your mixes sound great. This tape saturation is the secret that will give your mix a vintage vibe and a professional edge.

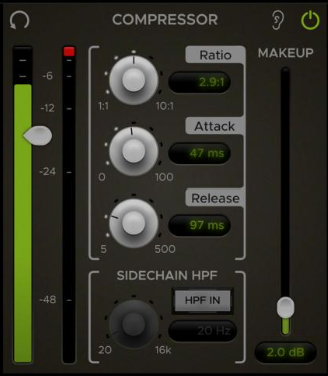

Compressor

32bus Compressor.png

The compressor in Harrison’s 32 Bus plugin is modeled after the highly regarded Mixbus strip compressor, but adds control over the attack, release, and filtering parameters. This compressor will make your mix sound punchy, smooth, and balanced. It is the ultimate tool for achieving a professional and polished sound.

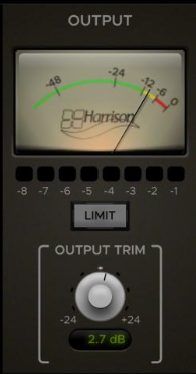

Output Section with Limiter

32bus ouput section.png

The Output section in the 32 Bus plugin gives you a stunning VU-style display that shows the final output level of your bus. You can also tweak the Limiter and Output Trim controls to fine-tune your mix. The Limiter is optional, and can prevent clipping and distortion in a very transparent manner. The Output section is the final stage and allows you to adjust the loudness of your mix to your liking before you export your final mix.



Additional Features

At the top-right corner of the plugin window are the Momentary Bypass and Settings buttons.

Momentary Bypass

The Momentary Bypass button bypasses the plugin for as long as it's held. This is useful for auditioning A/B comparisons quickly.



Settings

The Settings button reveals a pop-up menu where the window size can be adjusted. It also contains a link to the plugin manual and version info at the bottom.



Control Behaviors & Shortcuts

Various mouse & keyboard shortcuts can be used to perform certain actions on the following controls:

Sliders/Knobs

Action Shortcut
Reset to default

Double-click

Alt-click

Fine adjust

Shift-click & drag

Control-click & drag

Command-click & drag (OSX only)

Adjust value Scroll mouse wheel



Labels

Action Shortcut
Reset to default Alt-click
Fine adjust

Shift-click & drag

Control-click & drag (Windows only)

Command-click & drag (OSX only)

Adjust value Scroll mouse wheel
Close editor (discarding changes) ESC
Close editor (submitting changes) Enter



Combo Boxes (Drop-down menus)

Action Shortcut
Reset to default Alt-click
Scroll through menu items without opening menu Scroll mouse wheel
Select next/previous item (menu must already be open) Keyboard arrows
Close menu (if open) ESC



Band Controls

Action Shortcut
Reset Gain/Depth to default Double-click
Reset Frequency, Gain and Q to default Alt-click
Adjust Q

Right-click & drag

Shift-click & drag

Temporarily set to Search mode (for EQ) or solo band (For Dynamics) Control-click
Fine adjust Frequency and Gain Command-click & drag (OSX Only)
Action varies per plugin Scroll mouse wheel



Graph Rulers

Action Shortcut
Reset Pan & Zoom or Trim

Double-click

Alt-click

Fine adjust Pan or Trim

Shift + Left-click & drag

Control + Left-click & drag (Windows only)

Command + Left-click & drag (OSX only)

Fine adjust Zoom

Shift + Right-click & drag

Control + Right-click & drag (Windows only)

Command + Right-click & drag (OSX only)

Adjust Pan Scroll mouse wheel
Adjust Zoom Shift + Scroll mouse wheel



System Requirements

Your system must meet the following requirements in order to run Harrison plugins:

  • Windows 7 or higher
  • Mac OS 10.9 or higher
  • Linux GCC 5 compatible systems
  • OpenGL 3.2 or higher
  • libcurl-gnutls on Linux

macOS M1/ARM Support: This plug-in is provided as a universal binary for macOS and features native M1 support.

Note for Pro Tools users: Pro Tools 11 or higher is required on Mac, 10.3.5 or higher is required on Windows.

Additional requirements on Windows

Harrison plugins require the “Windows C++ Universal Runtime” to be installed on your computer.  Universal runtime is part of the system’s core libraries on Windows 10. On Windows versions Vista to 8.1,  it will be automatically installed via Windows Update. It is also possible to install the runtime manually, but that is outside the scope of this manual.

Note for Linux Users

If you’re experiencing issues with the plugin’s graphics or the GUI isn’t showing up correctly on Linux, make sure your system’s graphics driver supports the minimum required OpenGL version of 3.2 or higher. To check this, run glxinfo | grep Max in a terminal window and make sure that the value listed for the OpenGL core profile version string is at least 3.2 or greater.

If your core profile version meets this requirement but you are still experiencing graphics issues like the ones mentioned above, it is likely that your system is reporting an OpenGL version lower than 3.2 to ensure backwards compatibility with deprecated OpenGL functions. To work around this, you can force the system to report an OpenGL version of 3.2 or higher by setting this environment variable: MESA_GL_VERSION_OVERRIDE=3.2

You can use this as a prefix when opening your DAW from a terminal command like so:

MESA_GL_VERSION_OVERRIDE=3.2 {command_to_launch_program}

This will set the environment variable for that particular terminal session only, so it will be reset once the session is ended. If you don’t want to run this command every time you launch your DAW, you can set the environment variable in your profile script so that it automatically gets set every time you login.



Installation & Licensing

Licensing on macOS & Windows

This plugin is licensed through iLok on macOS and Windows. Visit iLok, Licensing and Activation for guidance on activating your Harrison plug-in.



Licensing on Linux

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)

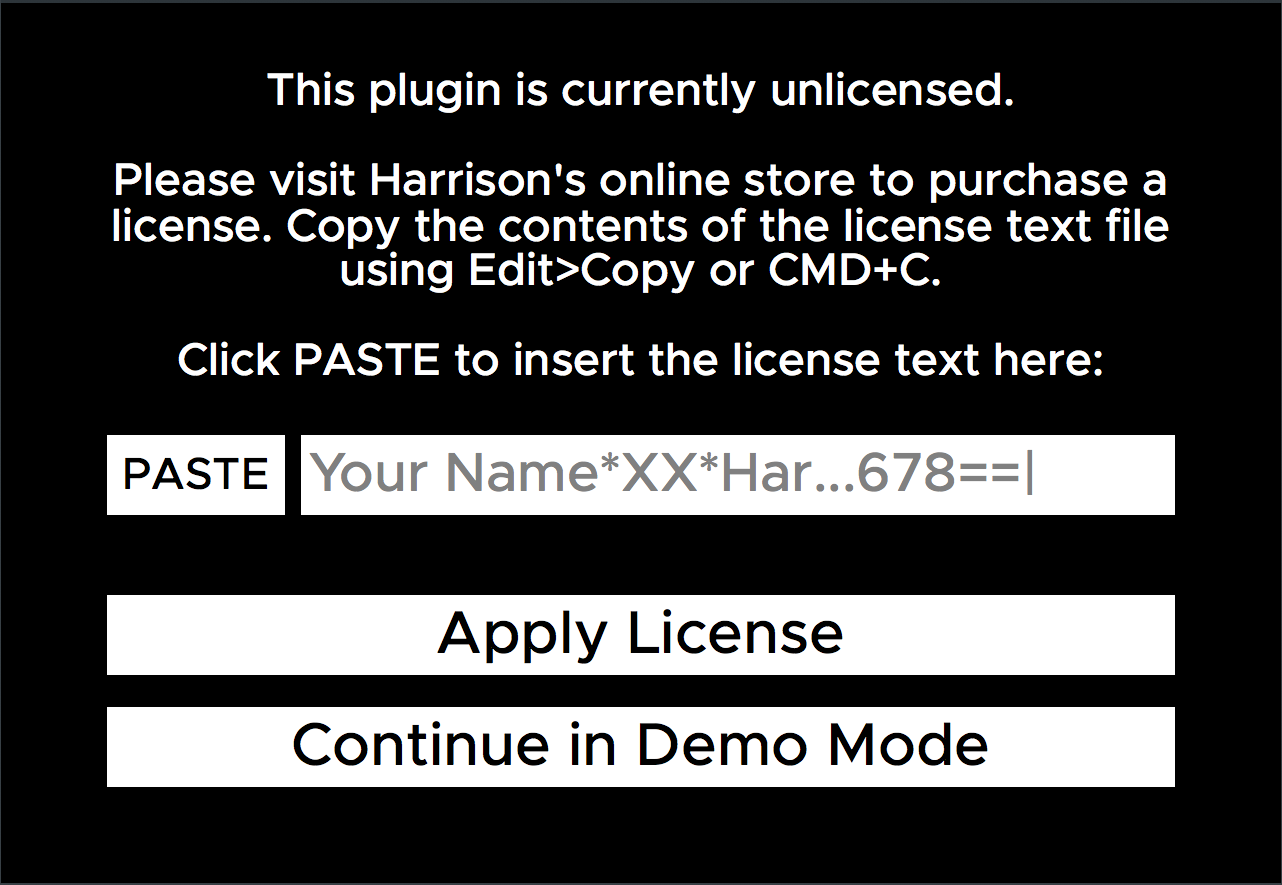

In DEMO mode, after using the plugin for a certain amount of time, it will display a message:

This message will come up periodically unless a license is provided. You can purchase a license directly from Harrison’s web store or from an authorized plugin reseller. Once you’ve purchased a license, install it by entering your license key into the designated field on this screen. Continue to the next section for detailed instructions on how to obtain your license key.

Obtaining your License Key

After you purchase a license, you will receive a license key that will look something like this:

{your  name}*AVA-BF*DC-138971-151520-1|gGLbnvCZJe386ULohzfQN6cIsoZ71n7c+AUg==|

This license key is required to install your license and activate the full version of the plugin. The way to obtain your license key varies depending on where you purchased the license from.

If you purchased the license from Harrison’s web store, you will receive an email with a link to download a text file containing your license key. If you purchased the license from a reseller, you will receive an email containing the license key text.



Licensing your Plugin

When prompted by the plugin, copy and paste your license key into the designated text input field. This will automatically install your license and register it with the plugin.

Once installed, Harrison’s license files are simple text (.txt) files which are stored in the user’s HOME folder. The HOME folder is the folder that contains your Desktop, Downloads and other folders. The location of your HOME folder is different for each operating system:

  • Linux: /home/{your username}

You may keep a copy of this file for your own use. The license is a per-user license and you may install the license file on all of your computers. To install the file on a new computer, simply save the file to a USB key or other transferable disk; then transfer the license file to the new computer’s HOME folder. The license file has your name encrypted in it, so you should not share it with other people. Your name will appear on the top of the plugin’s control panel to indicate that it is licensed to you.

The plugin will automatically detect your license key as long as the license file is stored in the HOME folder of the computer you are using. After transferring the license file to a new computer, it may be necessary to close and re-open your DAW in order for the plugin to detect the license.

If you don’t want to keep your license in your HOME folder for whatever reason, you may also store it in the following alternative location:  ~/.config/harrisonconsoles



Finding the plugin in your DAW

DAW operations vary tremendously. Generally speaking, to use the plugin you must follow these steps:

  1. Install the plugins, using the provided plugin installer application.
  2. Follow your DAW’s instructions to “scan” for new plugins.

Please refer to your DAW manual to see which plugin formats (AAX, AU, VST, or VST3) are supported by your workstation.

Most plugin formats require that plugins are installed to a specific location on the system. In these cases, the installer will place the plugins in the default locations.

For VST format, on Windows, it is normally expected that the user defines the location of VST plugins, and tells the workstation where to find the plugins. The default location for VST plugins is C:\Program Files\Steinberg\VST.  The plugin installer will save the VST (.dll) files to that location if a custom VST path is not provided by the OS.  If you are having trouble, you should verify that the path is included in your DAW VST scan paths.
